Sector

Sectors

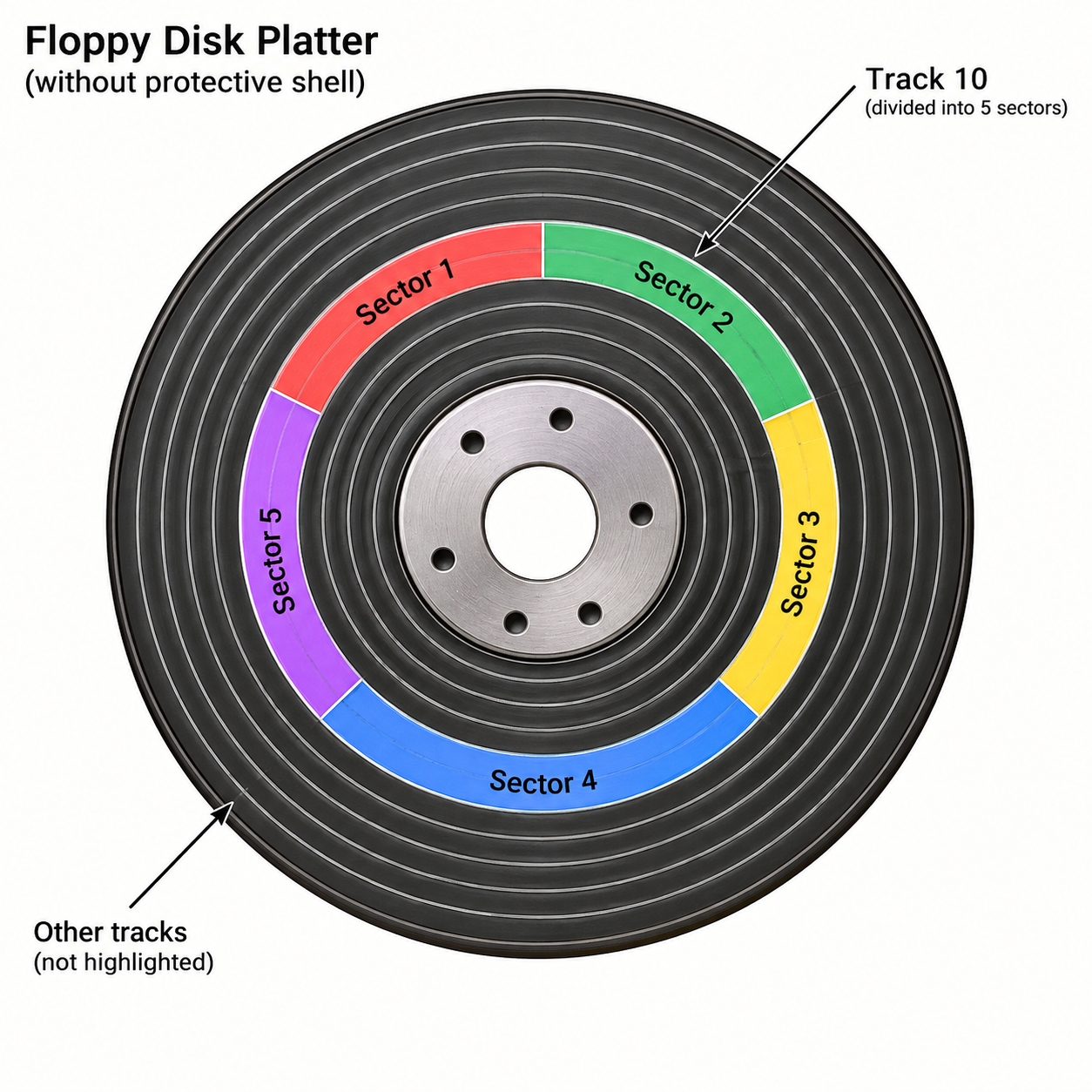

A physical sector is a region of a track of data on a disk. The number of sectors on a track varies by format between 5 and 26; the diagram below shows 5 sectors on a track.

There are two types of sectors (sometimes called "blocks") which may appear on a CBM disk. One is a "GCR" sector; these are used by 8580, 1540, 1541, 1551, 1570, 1571 (and compatibles). The other is an MFM sector which is used by some 1571 CP/M formats and all sectors on a 1581 or CMD drive. Note: a standard 1581 physical sector holds 2 blocks.

In my terminology, a sector is a PHYSICAL part of a disk... the operating system may split/combine physical sector(s) into a "block" (a logical concept).

A block, in Commodore terms, always holds 256 bytes of data (typical 254 bytes of user data preceded by a 2-byte file link).

For either GCR or MFM, a sector consists of 6 parts:

Sync Mark
Sector Header: identifies the track and sector of the data
Intra-sector Gap: padding bytes for the drive to switch from reading to writing when needed
Sync Mark
Data Block: 128 to 1024 encoded data bytes depending on format
Trailing Gap: padding bytes for the drive to switch writing to reading when needed

Even when a GCR sector holds a 256 byte block, the actual #bytes on the disk is way more than 256. For example, the common GCR encoding of a sector actually uses 260 * 5 / 4 = 325 bytes of "data" (plus more for a sector header). The 325 bytes are a special code (Group Code Recording = GCR) which adds some redundancy / synchronization for the hardware. Those 325 bytes translate into 260 "internal" bytes (in the following order):

1 "data marker" byte (7)
256 bytes of file-stream data (2 byte link + 254 data bytes)
1 "checksum" byte
2 "unused" bytes (might be used with copy-protection)

The other way to encode a sector, MFM, is more dynamic than the simple 5/4 expansion of GCR. Standard GCR sectors always hold 256 bytes of file-stream data (a block), but MFM may hold one of: 128, 256, 512, or 1024 bytes. For example 1581 and CMD disks store data in 512-byte sectors (in this case, a 256-byte block would need to be extracted from half a sector). Some CP/M disks (usable by 1571) use 128-byte sectors (in this case, a 256-byte block would need to be assembled from two sectors).

Non-standard GCR sectors are used by some copy-protected software. Although they use a GCR code, they may not use the standard 5-to-4 encoding scheme. I've seen 3-to-2 and 2-1 encodings which are less effecient in terms of data storage, but are faster to process than the standard 5-to-4 scheme.
