Track

Tracks

A track is a ring of data on a disk. Unlike a CompactDisc™ (which has one long spiral for a track), the tracks on a floppy or hard disk are a set of concentric rings.

For MFM-formatted disks, the number of sectors per track is constant (but varies by format between 5 and 26). Here are some typical values:

Bytes per Sector	Sectors per Track
128	26
256	16
512	9 or 10
1024	5

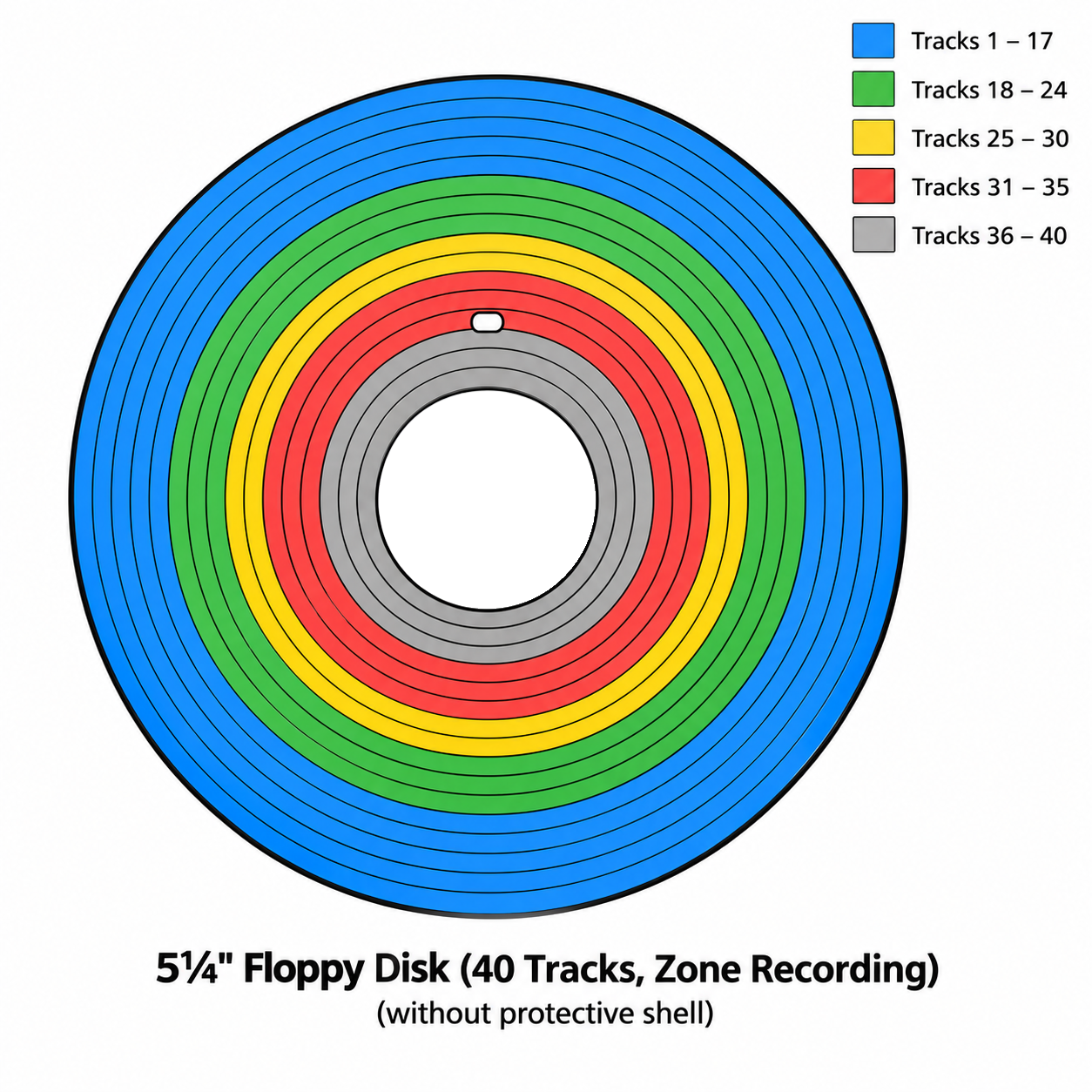

Zones

For standard GCR-formatted disks, the number of sectors per track and recording bit-rate depends on the zone (track# range):

Zone	Track Numbers	Sectors per Track	Bit Rate	Byte Rate
1	1 to 17 36 to 52	21	307,692	38,461.5
2	18 to 24 53 to 59	19	285,714	35,714.3
3	25 to 30 60 to 65	18	266,667	33,333.3
4	31 to 35 66 to 70	17	250,000	31,250.0
